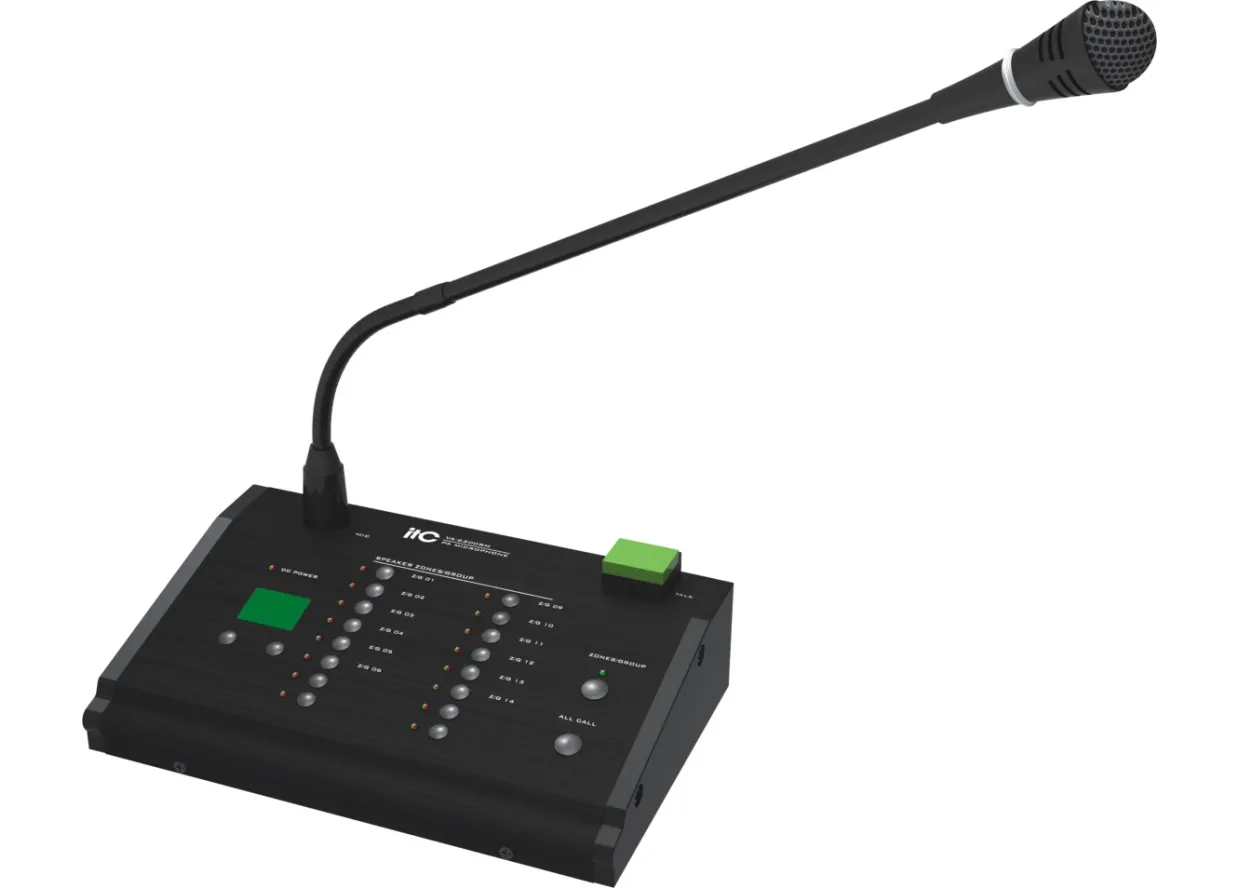

ITC- EVAC System Remote Paging Microphone VA-6200RM
Hızlı Teslimat
Stoktan hızlı ve zamanında sevkiyat
Uzman Destek
Proje, kurulum ve teknik destek
Güvenli Alışveriş
256-bit SSL ile güvenli ödeme
Garanti
2 Yıl resmi distribütör garantisi
Descriptions
* Support 16 zones, group paging button.
* System max support 32 pieces remote paging microphones.
* Microphone support anti-misoperation plug.
* Support line audio input, and input/output volume is adjustable.
* Paging priority can be set by software.
* Support 24 DC power supply.
* Remote MIC/Controller has 2 cascade interfaces, 1 in and 1 out.
* Optional paging the main controller or extension controller.
Specifications
Model | VA-6200RM |
MIC | Capacitor Microphone |
MIC Sensitivity | 10mV/600Ω |
MIC Frequency Response | 200Hz~10KHz |
MIC SNR | >65dB |
Line Input Sensitivity | 775mV/10KΩ |
line Input Frequency Response | 80Hz~16KHz |
Line Input SNR | >70dB |
Signal Output | 1V |
Distortion | <1% (Rated output power ), 1KHz |
Supply Voltage | 24V DC |
Dimension (L×W×D) | 256×52×149mm |
Net Weight | 1.3kg |

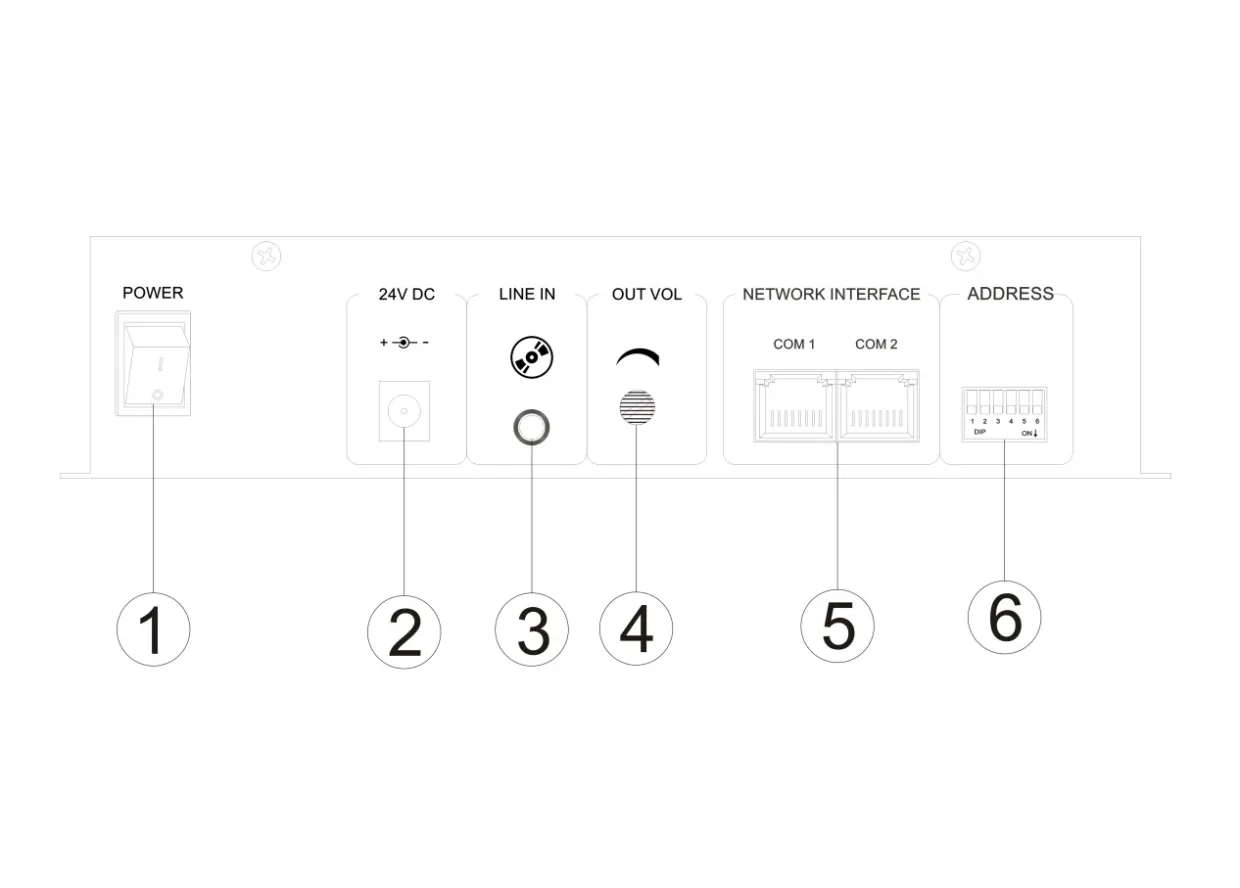

Diagram
Connectors
1 Power switch
2 DC voltage input
3 Line Sound source input
4 Output volume adjustment
5 CAN Communication network port
6 Dial code setting:(Upward: Use Down: Close)
