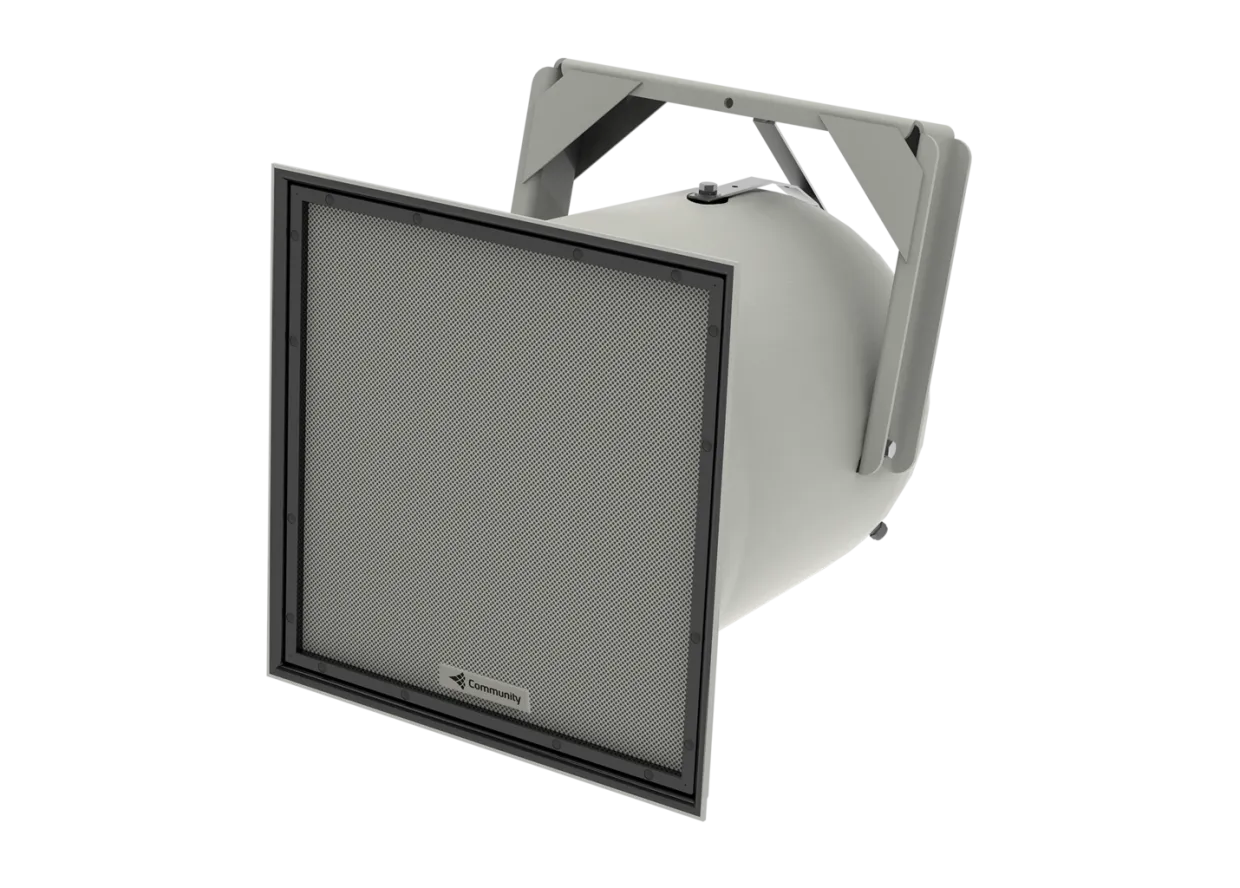

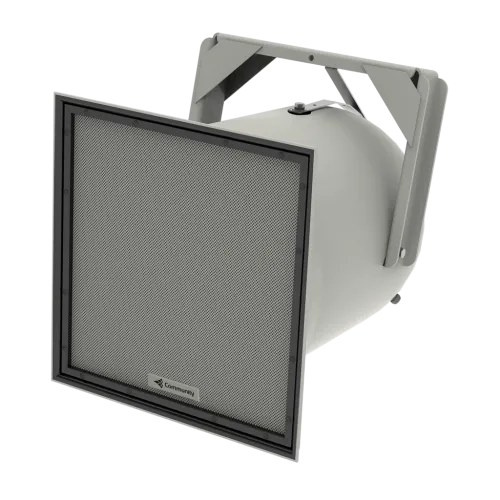

Community 2x12" 3 Yollu Dış Cephe Hoparlör 400W
Community R2-694Z-EN Loudspeaker Data Sheet
| GENERAL | |
| Height | 24.75 inches (629 mm) |
| Width | 24.75 inches (629 mm) |
| Depth | 30.75 inches (781 mm) |
| Weight | 96 lbs (43.5 kg) |
| Finish | RAL Color: Grey RAL 7038 |
| Material | Grille: 3-layer Weather-Stop™ with polyester mesh, foam, zinc-rich epoxy dual-layer powder-coated perforated marine-grade aluminum color-matched to enclosure |
| Mounting | (5) 1/2-inch - 13 rigging points |
| Included Accessories | Weather-resistant mounting yoke, light grey (RAL 7038) |
| ENVIRONMENTAL | |
| Operating Environment | Indoor / Outdoor |
| POWER | |
| Power |
400W Cont. |
| LOUDSPEAKER | |
| Loudspeaker Type | Defined coverage, Type B, 3-way, weather-resistant, loudspeaker system with 60°- 90° x 40° COVERAGE and EN54-24 certified. |
| Operating Mode | Passive with DSP, Passive with low-impedance operation |
| Operating Range | 70 Hz - 16.5 kHz |
| Transducers | LF 2 x 12 inches (305 mm) weather-treated, Ferrofluid-cooled MF 1 x M200 2 inches exit, non-metallic diaphragm, Ferrofluid-cooled HF – 1 x 1 inch exit, titanium diaphragm |
| Sensitivity | (1W/1m) 107 dB¹ |
| Dispersion | (H x V) 60-90° x 40° |
| Drivers | LF 2 x 12 inches MF 1 x 2 inches HF 1 x 1 inch |
| AUDIO | |
| Impedance | 4Ω |
| Maximum Output | 133 dB1 139 dB Peak¹ |
| CERTIFIED SOLUTIONS | |
| TAA Compliant | TAA Compliant |
| COMPLIANCE | |
| Environmental Ratings | IEC529 IP55W rating with a minimum 5-degree downward aiming angle |
